WPS & PQR - ASME Section IX - Blank Form
This is a blank ASME Section IX WPS with supporting PQR template.
The template file is built in Microsoft Excel, and follows the convention of the ASME suggested format.
These forms represent ASME QW-482 WPS & QW-483 PQR.

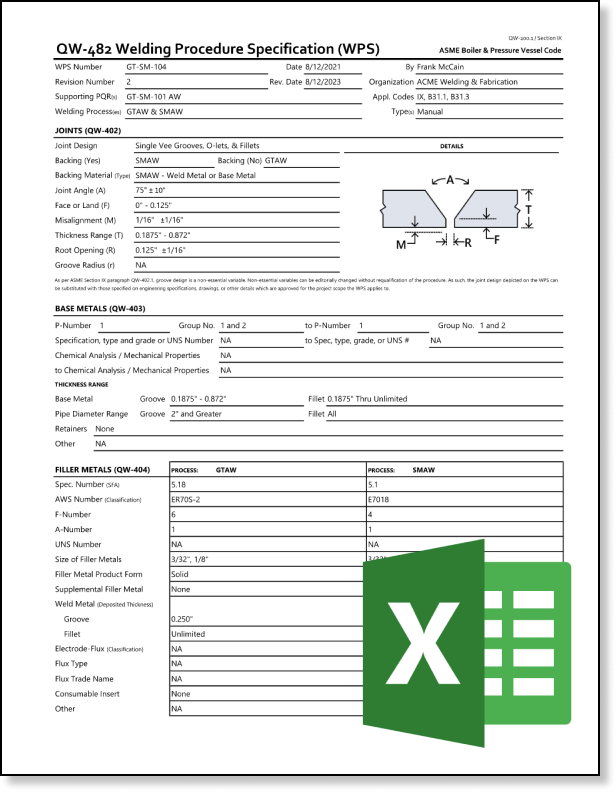

This file is a BLANK form template; some of the product images show populated fields as an example.
The file is formatted to be ready to use once downloaded, and includes embedded image files for all common weld joint configurations.
A revision log is built into the file to assist the author in keeping track of revisions made throughout the life cycle of the WPS.
